집 > 에너지 저장 시스템 > 주거용 ESS > 하나의 쌓을 수있는 ESS

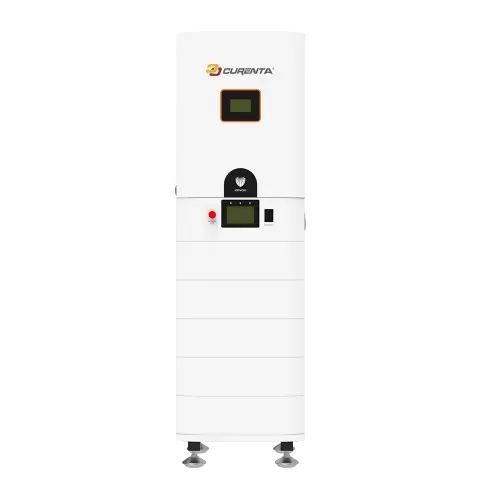

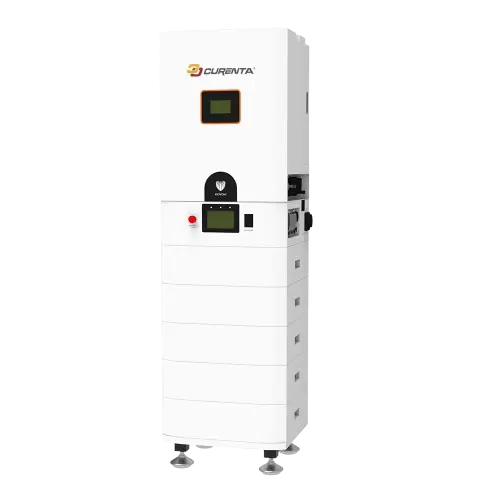

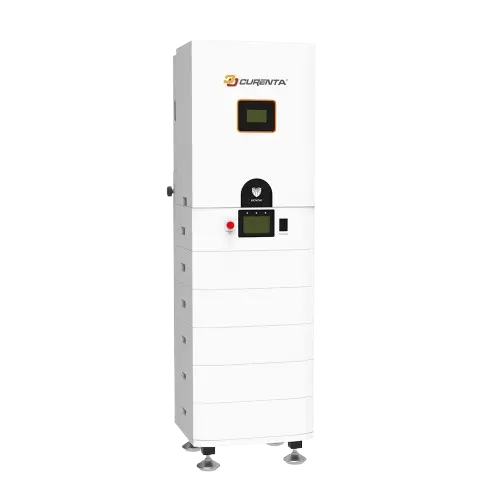

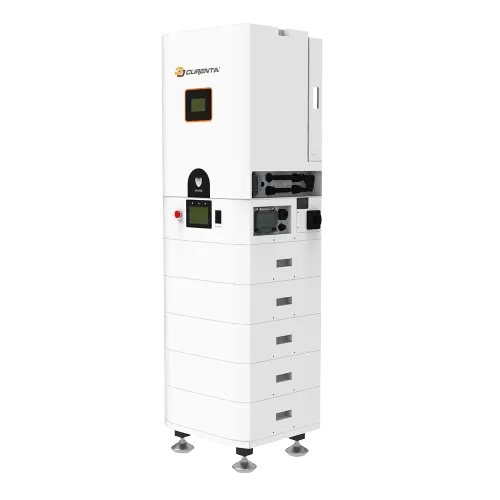

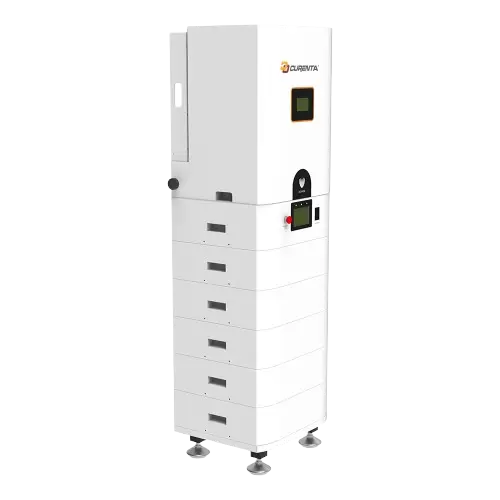

주거용 ESS
Curenta는 우수한 LifePO4 배터리 제조 기능과 강력한 R & D 센터를 보유하고 있으며 주요 기술을 보유하고 있으며 제품 설계에 적용하여 고품질 및 고성능 LIFEPO4 배터리 솔루션을 제공합니다.
매일 유지 보수 작업 및 비용이 없습니다
더 빠르고 확장 범위를 실행합니다
최대 75%의 지출 절약
-4 ° F -131 ° F에서 잘 작동합니다
이익
-
녹색 에너지로 골프 카트를 강화하십시오 -
빠르고 효율적인 비용은 생산성을 빠르게 향상시킬 수 있습니다 -
배터리 스왑없이 하루 종일 실행합니다 -
5 년 보증은 마음의 평화를 가져옵니다
매개 변수
| Model | CUR30KWH-17KW |
| MPPT Efficience | 99.90% |
| Maximum Efficience | >97.8% |
| Battery | |
| Model | CUR5000AIO |
| Number of series connections | 6 |
| Cell type | Li-ion(LFP) |
| Capacity(AH) | 100AH |
| Power(KWH) | 30KWH |
| Cycle life | >6000 |
| MPPT Input | |
| Max. Input Power(KW) | 30KW |
| Max. Input Voltage(V) | 1000V |
| MPPT Voltage Range(V) | 180~900 |
| Number of MPPT Trackers | 2 |
| Number of input strings per MPPT | 2/3 |
| Max. Input Current(A) | 28/28 |
| Maximum short-circuit current (A) | 32/32 |
| Battery port | |
| Working voltage range(V) | 180~700V |
| Max. charging and discharging current(A) | 100A |
| On-Grid connected output parameters | |
| Nominal Power(KW) | 20KW |
| Nominal Voltage(V) | 380/400,3L/N/PE |
| Frequency | 50Hz/60Hz |
| Max. Output Current(A) | 31A |
| Off-Grid connected output parameters | |
| Nominal Power(KW) | 20KW |
| Nominal Voltage(V) | 380/400,3L/N/PE |
| Frequency | 50Hz/60Hz |
| Max. Output Current(A) | 31A |
| Basic parameters | |
| Operation temperature | "-20℃~+60℃" |
| Working Altitude (m) | <4000m |
| IP Grade | IP54 |
| Size(W*H*D)(mm) | 510*447*1916 |
| Certificate | |
| Safety Standard | IEC62109-1/-2 |
| EMC Standard | EN61000-6-1/-3, IEC61000 |
| On-Gride Standard | VDE-AR-N 4105:2018 |
| On-Gride Standard | EN50549-1:2019 for Poland A&B |
| Transportation | UN38.3 |
| Model | CUR20KWH-12KW |
| MPPT Efficience | 99.90% |
| Maximum Efficience | >97.8% |
| Battery | |
| Model | CUR5000AIO |
| Number of series connections | 4 |
| Cell type | Li-ion(LFP) |
| Capacity(AH) | 100AH |
| Power(KWH) | 20KWH |
| Cycle life | >6000 |
| MPPT Input | |
| Max. Input Power(KW) | 18KW |
| Max. Input Voltage(V) | 1000V |
| MPPT Voltage Range(V) | 180~900 |
| Number of MPPT Trackers | 2 |
| Number of input strings per MPPT | 1/1 |
| Max. Input Current(A) | 15/15 |
| Maximum short-circuit current (A) | 18/18 |
| Battery port | |
| Working voltage range(V) | 180~700V |
| Max. charging and discharging current(A) | 100A |
| On-Grid connected output parameters | |
| Nominal Power(KW) | 12KW |
| Nominal Voltage(V) | 380/400,3L/N/PE |
| Frequency | 50Hz/60Hz |
| Max. Output Current(A) | 18A |
| Off-Grid connected output parameters | |
| Nominal Power(KW) | 12KW |
| Nominal Voltage(V) | 380/400,3L/N/PE |
| Frequency | 50Hz/60Hz |
| Max. Output Current(A) | 18A |
| Basic parameters | |
| Operation temperature | "-20℃~+60℃" |
| Working Altitude (m) | <4000m |
| IP Grade | IP54 |
| Size(W*H*D)(mm) | 509*446*1384 |
| Certificate | |
| Safety Standard | IEC62109-1/-2 |
| EMC Standard | EN61000-6-1/-3, IEC61000 |
| On-Gride Standard | AS4777.2:2020 |
| On-Gride Standard | EN50519-1:2019+AC:2 |
| Transportation | UN38.3 |
| Model | CUR25KWH-15KW |
| MPPT Efficience | 99.90% |
| Maximum Efficience | >97.8% |
| Battery | |
| Model | CUR5000AIO |
| Number of series connections | 5 |
| Cell type | Li-ion(LFP) |
| Capacity(AH) | 100AH |
| Power(KWH) | 25KWH |
| Cycle life | >6000 |
| MPPT Input | |
| Max. Input Power(KW) | 22.5KW |
| Max. Input Voltage(V) | 1000V |
| MPPT Voltage Range(V) | 180~900 |
| Number of MPPT Trackers | 2 |
| Number of input strings per MPPT | 1/2 |
| Max. Input Current(A) | 15/28 |
| Maximum short-circuit current (A) | 18/32 |
| Battery port | |
| Working voltage range(V) | 180~700V |
| Max. charging and discharging current(A) | 100A |
| On-Grid connected output parameters | |
| Nominal Power(KW) | 15KW |
| Nominal Voltage(V) | 380/400,3L/N/PE |
| Frequency | 50Hz/60Hz |
| Max. Output Current(A) | 22A |
| Off-Grid connected output parameters | |
| Nominal Power(KW) | 15KW |
| Nominal Voltage(V) | 380/400,3L/N/PE |
| Frequency | 50Hz/60Hz |
| Max. Output Current(A) | 22A |
| Basic parameters | |
| Operation temperature | "-20℃~+60℃" |
| Working Altitude (m) | <4000m |
| IP Grade | IP54 |
| Size(W*H*D)(mm) | 510*446*1745 |
| Certificate | |
| Safety Standard | IEC62109-1/-2 |
| EMC Standard | EN61000-6-1/-3, IEC61000 |
| On-Gride Standard | NRS097-2-1:2017 |
| On-Gride Standard | G98 G99 |
| Transportation | UN38.3 |
| Model | CUR30KWH-17KW |
| MPPT Efficience | 99.90% |
| Maximum Efficience | >97.8% |
| Battery | |
| Model | CUR5000AIO |
| Number of series connections | 6 |
| Cell type | Li-ion(LFP) |
| Capacity(AH) | 100AH |
| Power(KWH) | 30KWH |
| Cycle life | >6000 |
| MPPT Input | |
| Max. Input Power(KW) | 25.5KW |
| Max. Input Voltage(V) | 1000V |
| MPPT Voltage Range(V) | 180~900 |
| Number of MPPT Trackers | 2 |
| Number of input strings per MPPT | 2/2 |
| Max. Input Current(A) | 28/28 |
| Maximum short-circuit current (A) | 32/32 |
| Battery port | |
| Working voltage range(V) | 180~700V |
| Max. charging and discharging current(A) | 100A |
| On-Grid connected output parameters | |
| Nominal Power(KW) | 17KW |
| Nominal Voltage(V) | 380/400,3L/N/PE |
| Frequency | 50Hz/60Hz |
| Max. Output Current(A) | 25 |
| Off-Grid connected output parameters | |
| Nominal Power(KW) | 17KW |
| Nominal Voltage(V) | 380/400,3L/N/PE |
| Frequency | 50Hz/60Hz |
| Max. Output Current(A) | 25A |
| Basic parameters | |
| Operation temperature | "-20℃~+60℃" |
| Working Altitude (m) | <4000m |
| IP Grade | IP54 |
| Size(W*H*D)(mm) | 510*447*1916 |
| Certificate | |
| Safety Standard | IEC62109-1/-2 |
| EMC Standard | EN61000-6-1/-3, IEC61000 |
| On-Gride Standard | EN 50549-1 for Czech |
| On-Gride Standard | OVE-R25 |
| Transportation | UN38.3 |
| Model | CUR30KWH-17KW |
| MPPT Efficience | 99.90% |
| Maximum Efficience | >97.8% |
| Battery | |
| Model | CUR5000AIO |
| Number of series connections | 6 |
| Cell type | Li-ion(LFP) |
| Capacity(AH) | 100AH |
| Power(KWH) | 30KWH |
| Cycle life | >6000 |
| MPPT Input | |
| Max. Input Power(KW) | 30KW |
| Max. Input Voltage(V) | 1000V |
| MPPT Voltage Range(V) | 180~900 |
| Number of MPPT Trackers | 2 |
| Number of input strings per MPPT | 2/3 |
| Max. Input Current(A) | 28/28 |
| Maximum short-circuit current (A) | 32/32 |
| Battery port | |
| Working voltage range(V) | 180~700V |
| Max. charging and discharging current(A) | 100A |
| On-Grid connected output parameters | |
| Nominal Power(KW) | 20KW |
| Nominal Voltage(V) | 380/400,3L/N/PE |
| Frequency | 50Hz/60Hz |
| Max. Output Current(A) | 31A |
| Off-Grid connected output parameters | |
| Nominal Power(KW) | 20KW |
| Nominal Voltage(V) | 380/400,3L/N/PE |
| Frequency | 50Hz/60Hz |
| Max. Output Current(A) | 31A |
| Basic parameters | |
| Operation temperature | "-20℃~+60℃" |
| Working Altitude (m) | <4000m |
| IP Grade | IP54 |
| Size(W*H*D)(mm) | 510*447*1916 |
| Certificate | |
| Safety Standard | IEC62109-1/-2 |
| EMC Standard | EN61000-6-1/-3, IEC61000 |
| On-Gride Standard | VDE-AR-N 4105:2018 |
| On-Gride Standard | EN50549-1:2019 for Poland A&B |
| Transportation | UN38.3 |
| Model | CUR20KWH-12KW |
| MPPT Efficience | 99.90% |
| Maximum Efficience | >97.8% |
| Battery | |
| Model | CUR5000AIO |
| Number of series connections | 4 |
| Cell type | Li-ion(LFP) |
| Capacity(AH) | 100AH |
| Power(KWH) | 20KWH |
| Cycle life | >6000 |
| MPPT Input | |
| Max. Input Power(KW) | 18KW |
| Max. Input Voltage(V) | 1000V |
| MPPT Voltage Range(V) | 180~900 |
| Number of MPPT Trackers | 2 |
| Number of input strings per MPPT | 1/1 |
| Max. Input Current(A) | 15/15 |
| Maximum short-circuit current (A) | 18/18 |
| Battery port | |
| Working voltage range(V) | 180~700V |
| Max. charging and discharging current(A) | 100A |
| On-Grid connected output parameters | |
| Nominal Power(KW) | 12KW |
| Nominal Voltage(V) | 380/400,3L/N/PE |
| Frequency | 50Hz/60Hz |
| Max. Output Current(A) | 18A |
| Off-Grid connected output parameters | |
| Nominal Power(KW) | 12KW |
| Nominal Voltage(V) | 380/400,3L/N/PE |
| Frequency | 50Hz/60Hz |
| Max. Output Current(A) | 18A |
| Basic parameters | |
| Operation temperature | "-20℃~+60℃" |
| Working Altitude (m) | <4000m |
| IP Grade | IP54 |
| Size(W*H*D)(mm) | 509*446*1384 |
| Certificate | |
| Safety Standard | IEC62109-1/-2 |
| EMC Standard | EN61000-6-1/-3, IEC61000 |
| On-Gride Standard | AS4777.2:2020 |
| On-Gride Standard | EN50519-1:2019+AC:2 |
| Transportation | UN38.3 |
